The Cuplock system stands out as a premier choice for scaffolding needs globally. Its distinctive node point connection ensures swift assembly, enhanced safety, cost-effectiveness, and remarkable versatility. Crafted from high-quality steel tubes of 48 mm diameter (40 NB), it guarantees durability and reliability. The connection points are strategically placed at 500 mm intervals, optimizing stability with sizes ranging from 500 mm to 3000 mm which accommodates almost all project requirements with ease.
The Horizontal Ledgers are made from high quality metal tube of 48 mm diameter (40 NB) with cast wedge-fixing instrument (Blades) at the ends.They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guard rails. We have different sizes available like 565 mm, 600 mm, 915 mm, 950 mm,1200 mm,1500 mm,1800 mm & 2000 mm.
Base jack (screw jack) is used as a starting base for a scaffold which provides stability by adjusting the base jack nut on uneven ground .Adjustable Base Jack fabricated of diameter 32 mm, 36 mm, 38 mm, MS Bar with 4 TPI Acme / Square thread, MS Flat Base Plate of size 150 x 150 x 6 mm and One cup type nut of heavy duty cast iron. Sizes available are 350 mm, 450 mm, 500 mm, 550 mm & 600 mm bar length.
U-Heads are designed to be used in conjunction with Adjustable System Scaffolding. The main function of a U-Head is to support channels and hold timber beams securely in place. The U -Head Jack offered by us are of superior quality standards, fabricated of diameter 32 mm, 36 mm, 38 mm, MS bar with 4 TPI Acme / Square thread, 102 mm x 40 mm x 6mm MS flat U head and one cup type nut of heavy duty cast iron. Sizes available are 350 mm, 450 mm, 500 mm, 550 mm & 600 mm bar length.
Adjustable Telescopic Prop is one of the ideal, most economical & important part of shuttering system to support all kind of form-work to slabs, beams, wall and columns. It is fabricated from high-quality steel tubes of 60 mm diameter (50 NB). Available in 2 x 2 m, 2 x 3 m & 3 x 3 m sizes.
Mild steel plates fabricated of 3 mm thick sheet used as support for casting of slab work.
Available in 3'x2', 3'x1.5', 3'x1.25', 3'x1', 3'x0.75', 3'x0.5' and 4'x1.5' sizes.
Span is used to provide maximum safety with minimum supervision. It is fabricated out of 2 mm sheet lattices of 10 mm bar and main bar of 16 mm & T section of 40 x 5 mm. It needs no intermediate support to be provided.
Couplers are fundamentally used to assemble tubes & fittings scaffold. Couplers are of fixed type and movable type made from ms pipe and forged metal sheet.
Joint pins/connectors are used when vertical standards are connected end to end. This is made from Mild steel, this pin is 600 mm & holes of 2.5 mm diameter each.
Jali is placed over ledgers which enables manpower to establish hassle free movement, material handling and provides better working platform. This is made from 20 mm square pipe in different dimensions.

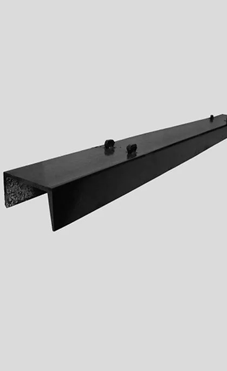

Channels are mainly used in structural application to support steel plates.It is fixed on top of adjustable props and cup lock systems. Channel enable contractors to reduce maintenance cost along with the cost of cutting and wastage of timber. Available sizes are of 8 ft , 9 ft and 10 ft.
A scaffolding pipe is a component of a whole scaffolding structure or formwork. Scaffolding pipes are the tubes made out of mild steel having self weight of 19 kg and 6 mtr in length .These pipes are used in tube-fitting scaffolding system and also provides as diagonal support in cuplock scaffolding system.
